Features
- Constructed with 6061-T651 aluminium.

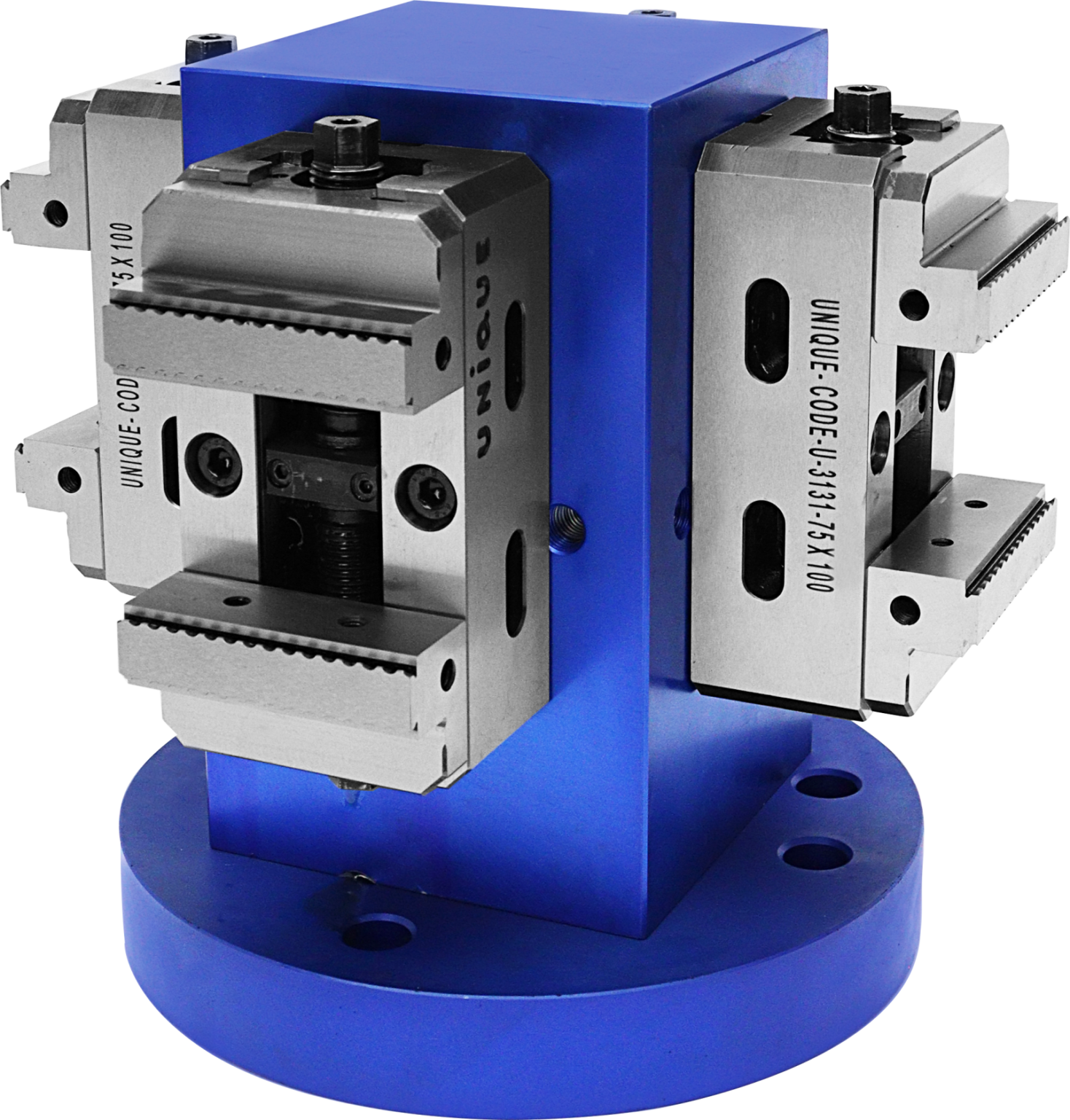

- Every face can be mounted with either a Unique U3131 vise(50, 75, or 100 mm jaw width) or a Unique U3636R plate with a 52 x 52 grid pattern.
- Anodized for better corrosion resistance.
- Versatile mounting options.
- Direct to table mounting is possible with most of the 5-axis T-slotted machine tables.
- Tombstone consists of timing key & centering key for accurate positioning.
- Custom sizes and configurations available upon request.
Specifications
| A | B | C | D | E | F | G | H | Weight (Kgs) |
| 100/50 | 15 | 310 | 280 | 50 | 96 | 18 | 10 | 12 |
