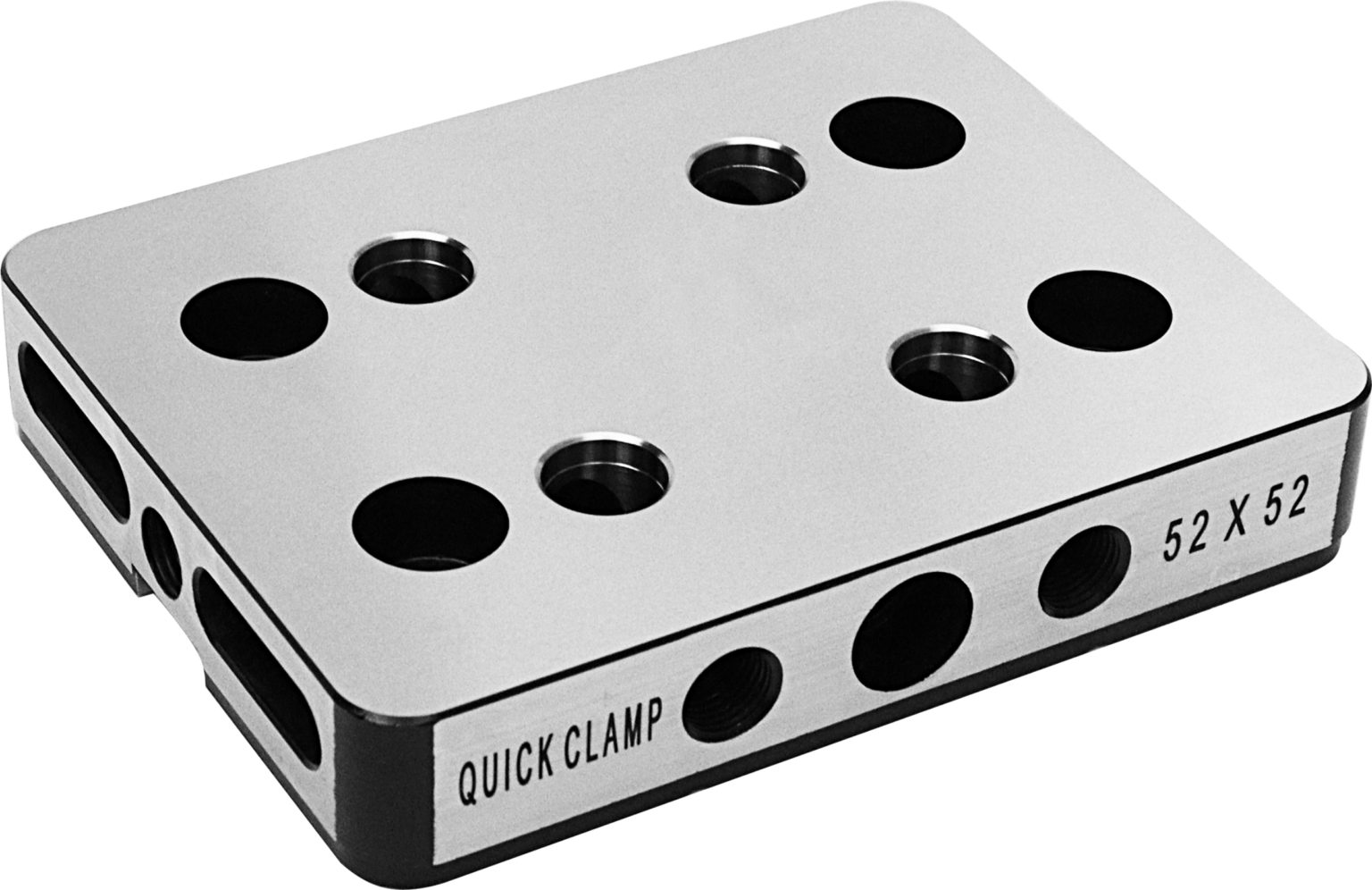

Features
- High quality alloy steel body, case-hardened to HRC 60 ± 2.
- Every internal part has a hardness of HRC 60 ± 2, which makes the whole body super wear-resistant.
- Its benefit is high repeat accuracy and extremely short set-up times.
- Fixtures/vises mounted on this product can be rotated by 900, with a centering accuracy of 0.01 mm.
- Supports grid patterns (most common) of 52x52 and 96x964.
- Can be supplied with pre-drilled and tapped mounting patterns, to make it compatible with the most commonly used T-slot machine-table standards in the market.
- Comes with Aligning Keys, so as to align it on the machine table.
- Clamping Repeatability well within 0.01 mm.
- As the bed height is maintained, multiple plates can be used in series to create a larger fixture/clamping range.
Specifications
| Grip Pattern | A | B | C | Weight (Kgs) |
| 52 mm | 150 | 116 | 27 | 2.5 |
| 96 mm | 192 | 156 | 27 | 5 |
| Combo 56 & 96 mm | 192 | 156 | 27 | 4.7 |
